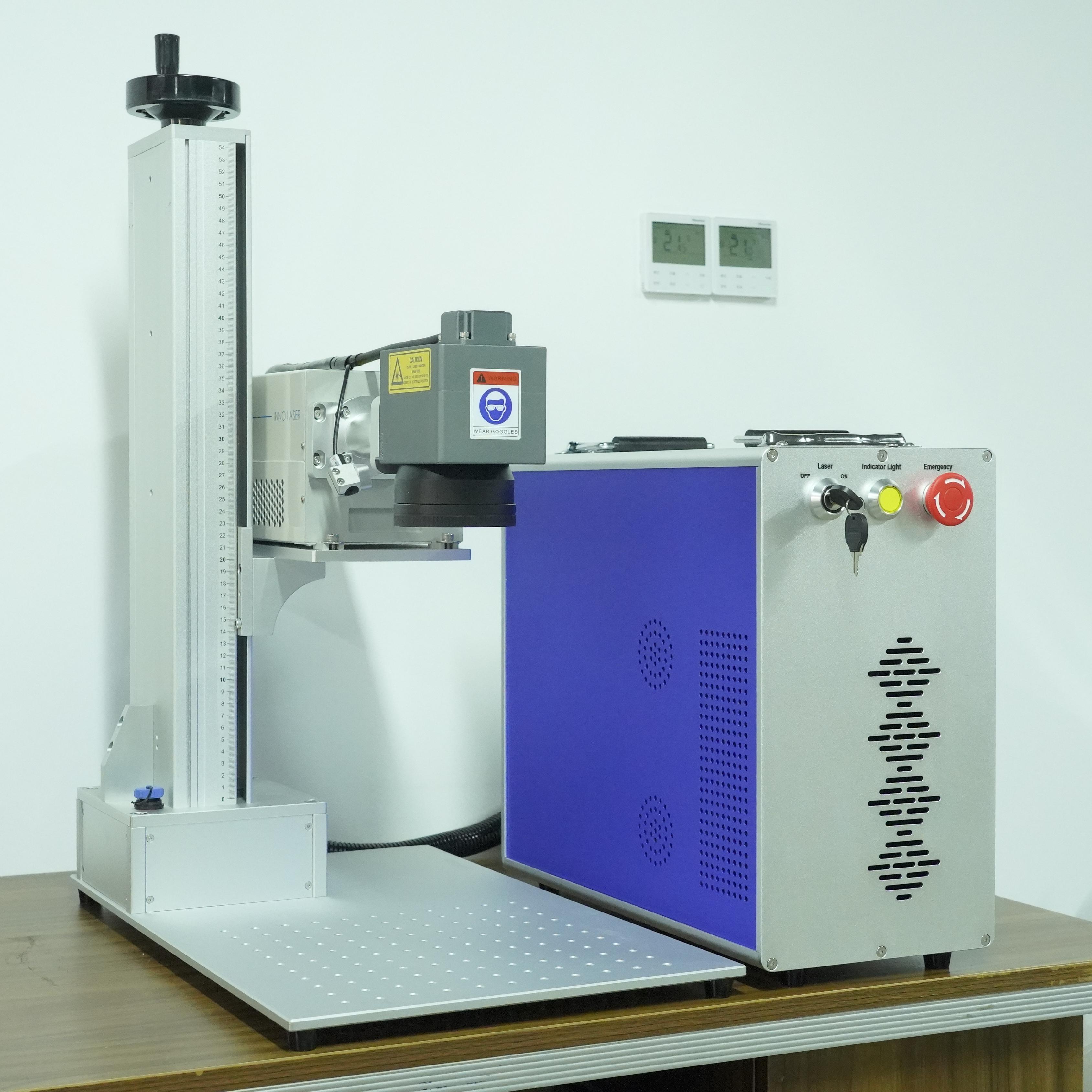

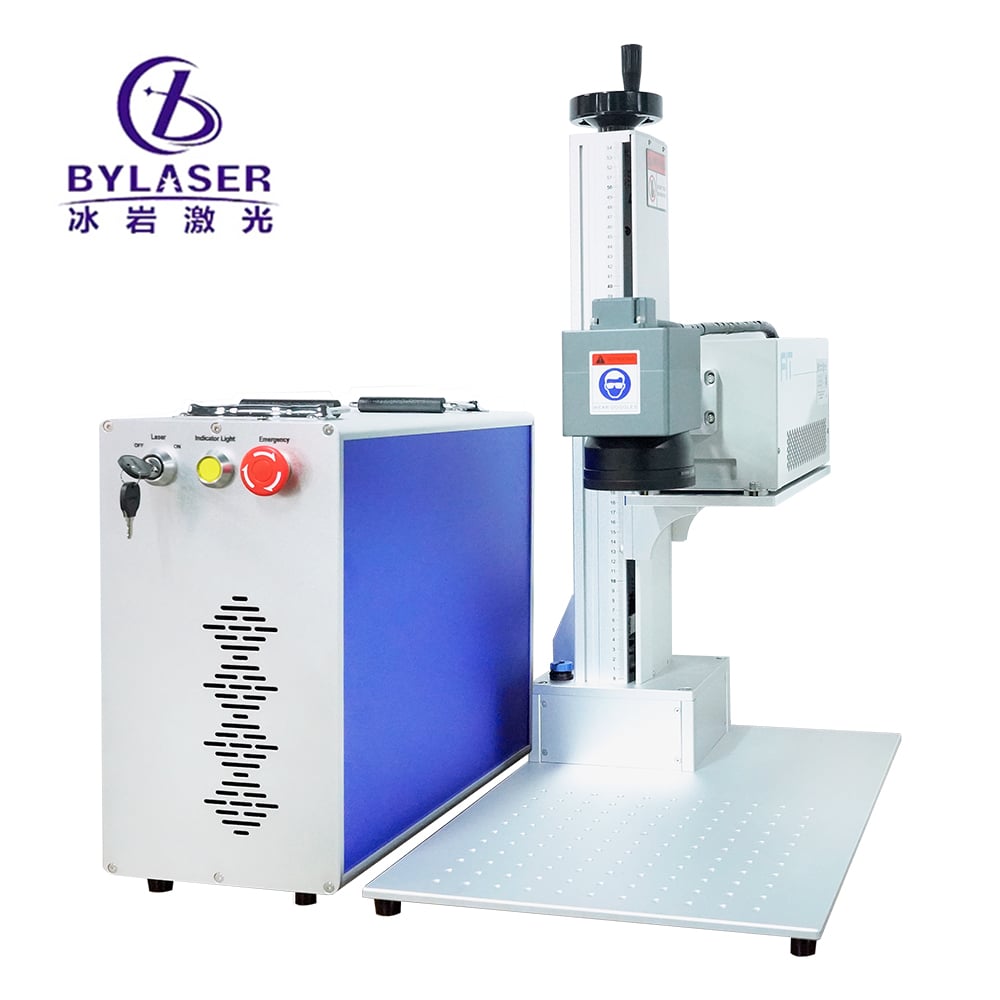

Bingyan New UV laser crystal glass internal engraving machine, equipped with dual processing capability (2D engraving and 3D internal engraving), intelligent air cooling, electric lifting, and auto-focus technologies, offers unparalleled versatility and precision. Its ability to handle both surface and deep internal engravings expands its utility across industrial, artistic, and technological fields, meeting demands for multi-dimensional customization, miniaturization, and sustainable production.
Advantages:
Intelligent Air Cooling System
Efficient Heat Dissipation: Employs intelligent temperature-controlled air cooling, eliminating the need for external water-cooling systems, reducing energy consumption and maintenance costs.
Stability Assurance: Real-time monitoring of laser temperature ensures consistent power output during prolonged operation, extending device lifespan.
Quiet & Energy-Saving: Optimized airflow design reduces noise (<50dB), suitable for labs, exhibitions, and other noise-sensitive environments.
Electric Lifting Platform
Precision Adjustment: Electrically controlled platform height (accuracy ±0.01mm), compatible with materials of varying thicknesses (5mm to 300mm).
One-Touch Calibration: Pre-set height parameters enable rapid switching between workpieces, boosting batch-processing efficiency.
Anti-Vibration Design: Closed-loop servo motor minimizes mechanical vibrations, ensuring engraving accuracy.
Auto-Focus System
Intelligent Compensation: Adapts to curved or irregular surfaces, maintaining consistent engraving depth (error <0.05mm).
Zero Manual Intervention: Full automation after one-touch activation, lowering operational complexity and human error.
Dual Processing Capability
2D & 3D Versatility: Supports both flat surface engraving (e.g., text, logos) and complex 3D internal engraving (e.g., 3D portraits, layered structures) with a single machine.
Mode-Switching Flexibility: Pre-configured software modes allow seamless transitions between 2D and 3D tasks without hardware adjustments.
Multi-Scenario Adaptability: Ideal for diverse applications, from industrial marking to artistic creations, reducing the need for multiple devices.
Additional Advantages:
Non-Contact Processing: Avoids mechanical stress damage, achieving a yield rate of up to 99.9%.
Ultra-High Precision: Minimum line width of 10μm, supports intricate 3D reliefs and grayscale effects.
Eco-Friendly: No chemical pollutants or dust emissions, compliant with industrial environmental standards.

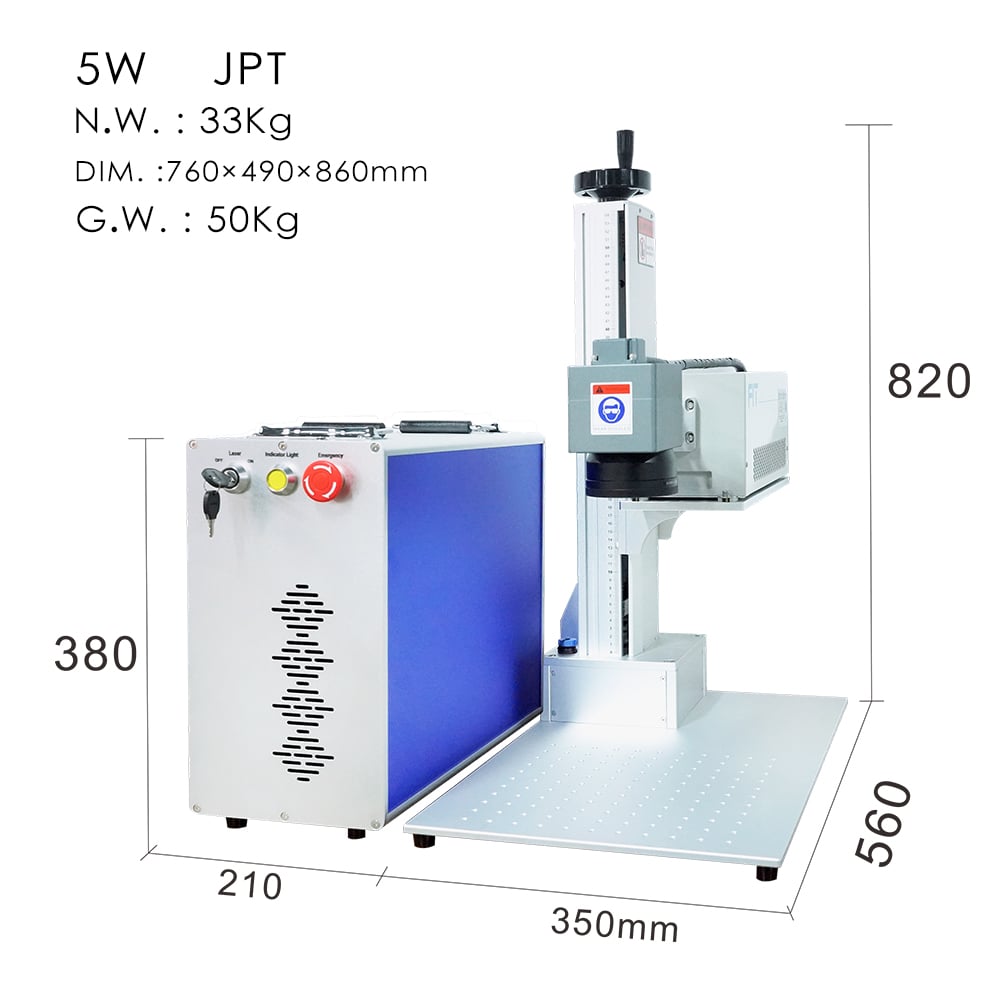

Technical Parameters：
| Power | 5W |
| Laser Wavelength | 355nm |

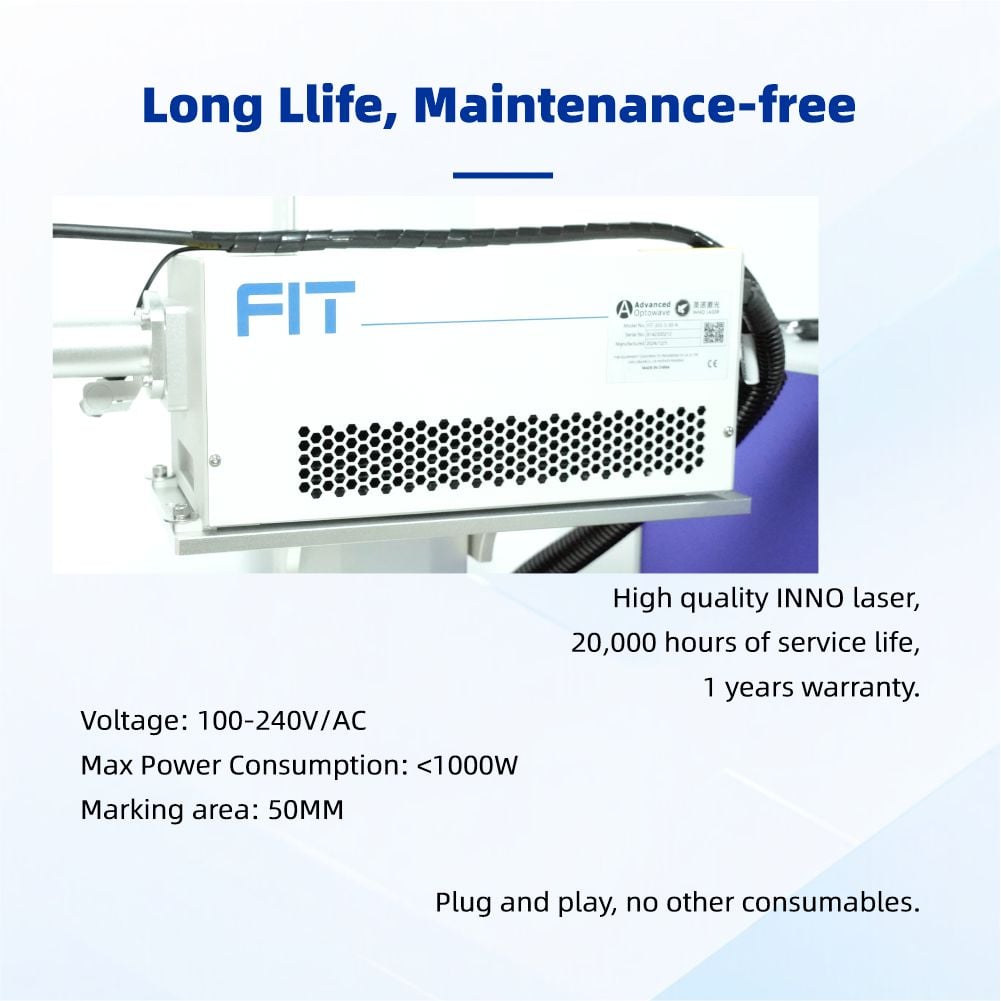

| Laser Source | INNO Laser |
| Supply Voltage | 100-240VAC 50/60HZ |
| Max Power Consumption | 1200W |

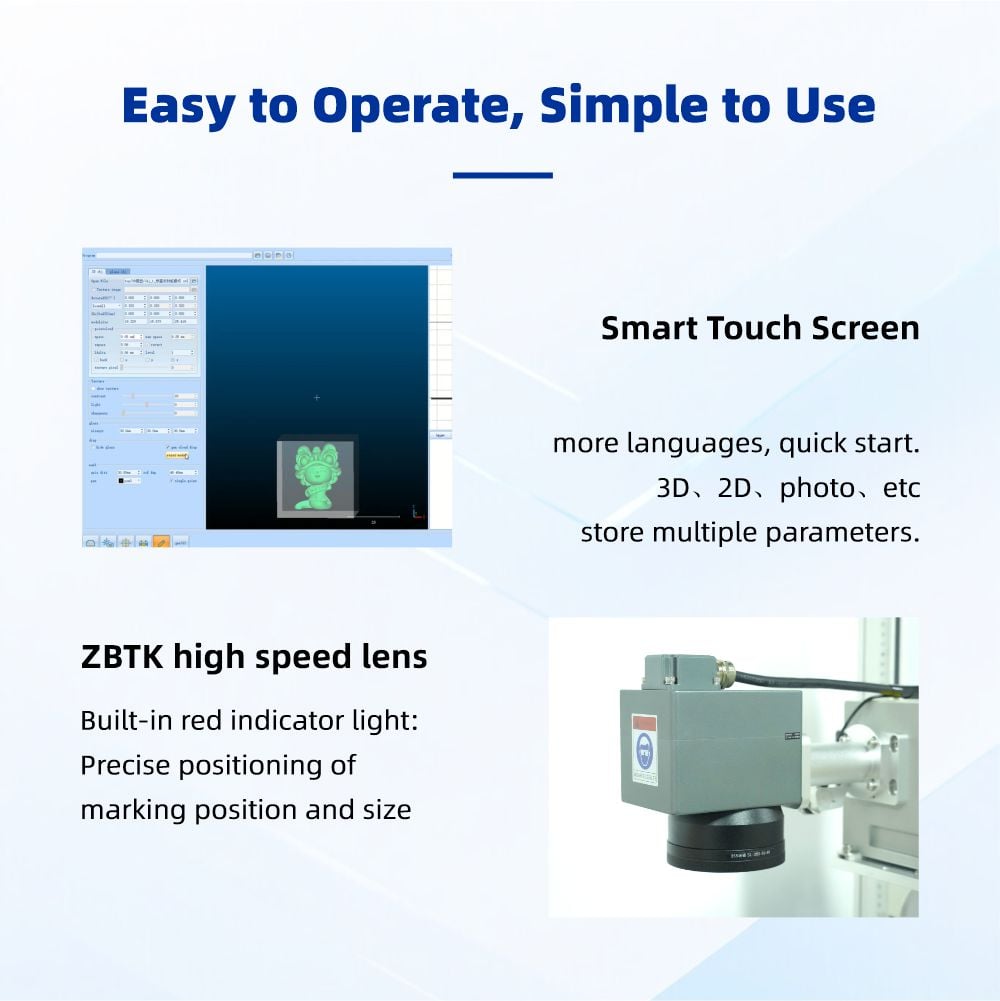

| Galvanometer | ZBTK |
Laser controller software | RKQ |
| Marking Platform | 350*350mm |
| Marking Range | 50*50mm |
| Operating System | Windows |
| Cooling System | Air Cooling |
| Temperature | 0-40°C |
| Ambient Humidity | ≤80% |
| Interface Language | Chinese, English, Korean, Russian, Vietnamese |
| File Import Type | BMP、JPG、JPEG PLT、DXF、AI 、DWG、JWW、 stl、obj, etc. |
| Packing Size | 760*490*860mm |
| Net weight | 33Kg |
| Packing Weight | 50Kg |
Application:

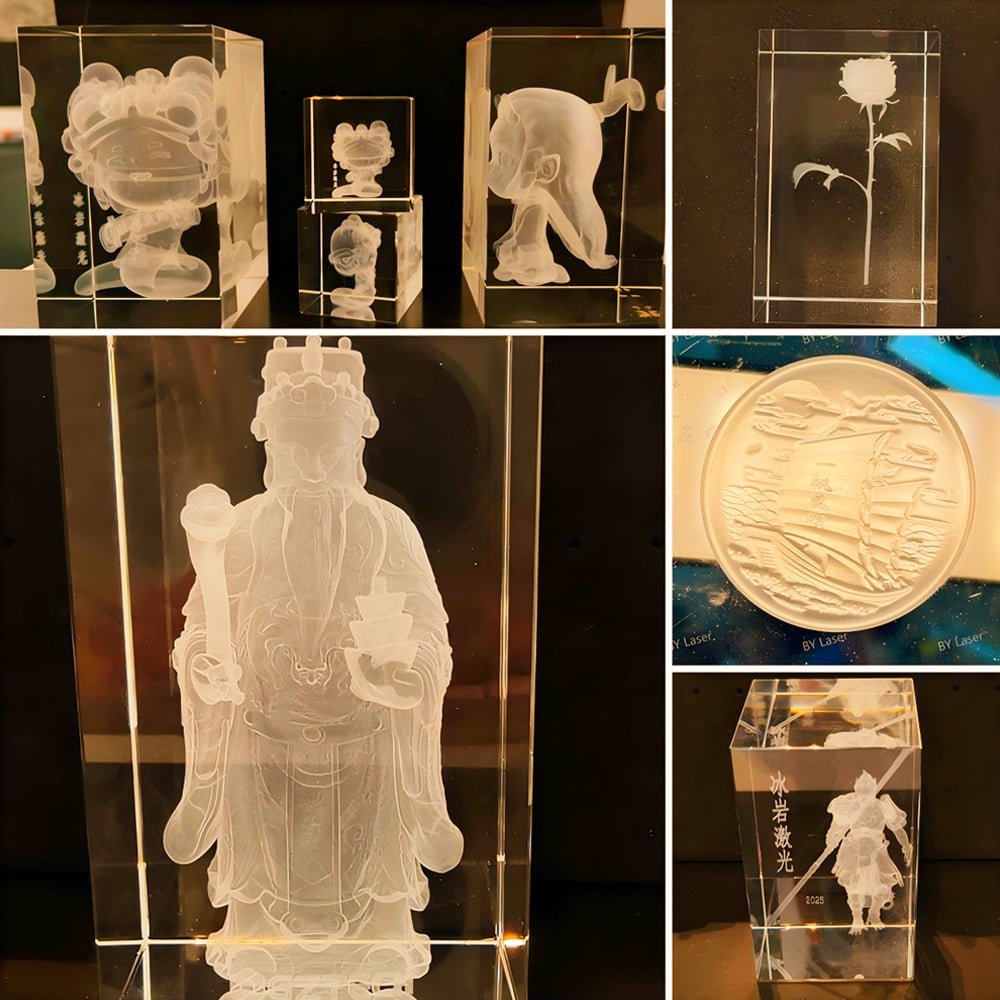

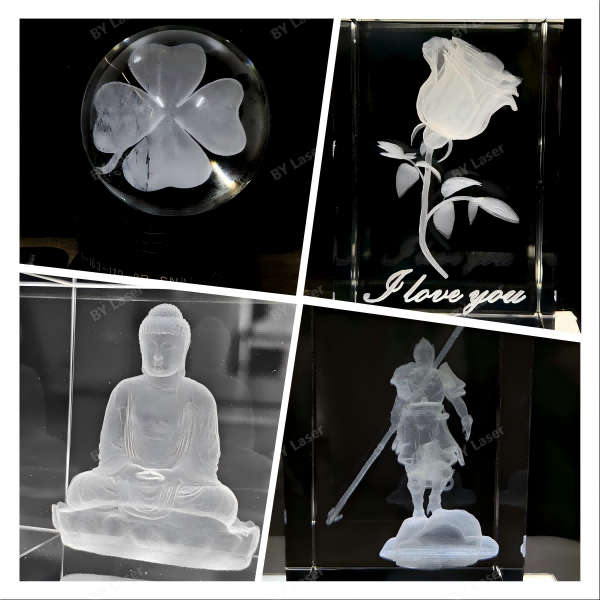

Premium Crafts & Gifts
Custom crystal trophies, commemorative items, wedding-themed decorations with 3D portraits, corporate logos, or dynamic lighting effects.
Artistic glass screens, lamps, and decorative pieces featuring traditional or modern abstract patterns.
Industrial Precision Marking
Invisible QR code marking on optical glass components (lenses, prisms), resistant to high temperatures and corrosion.
Microstructure engraving on microfluidic chips or biological slides, meeting medical/research precision requirements.
Architecture & home decoration
Laminated glass engravings (partitions, curtain walls) with integrated LED lighting for dynamic visual displays.
Anti-counterfeit logos or personalized patterns on bathroom glass and furniture panels.
Technology & Cultural Fields
3D data engraving for museum artifact replicas, preserving intricate details.
Optical anti-counterfeit labels for luxury packaging, enhancing security.
